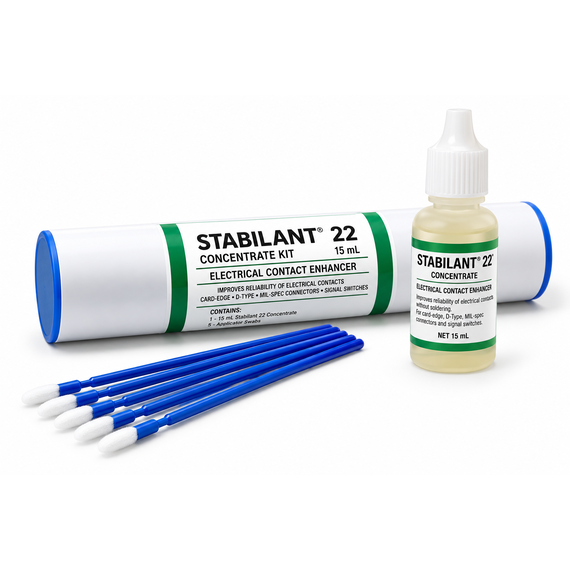

STABILANT 22 - Contact Enhancer, Non Conductive, 15ml Kit

Stabilant 22 is a polymer concentrate designed to improve the reliability of electrical contacts and connectors without permanently bonding the contact surfaces. It is suitable for maintenance, repair and reliability improvement in a wide range of electrical and electronic connection systems.

Overview

Stabilant 22 is a polymer concentrate developed to improve electrical contact performance in applications such as card-edge connectors, D-Type connectors, MIL-spec connectors and signal switches.

It is designed to provide highly reliable contact performance without the need to solder or permanently bond the mating surfaces. This makes it well suited to maintenance and repair applications where connectors must remain serviceable and removable.

Features & Benefits

• Improves electrical contact reliability
• Helps reduce intermittent electrical connection problems
• Provides solder-like contact reliability without permanently bonding surfaces
• Non-conductive until activated within the electrical contact area
• Helps minimise electrical leakage between adjacent contacts
• Suitable for card-edge connectors
• Suitable for D-Type connectors
• Compatible with MIL-spec connectors
• Suitable for signal switches and similar electrical contacts
• Very low vapour pressure for long-term stability
• Easy to apply during maintenance and repair work

Specifications

• Product: Stabilant 22
• Form: Concentrate
• Quantity: 15 mL
• Polymer Type: Amorphous semiconductive polyoxyethylene-polyoxypropylene block polymer
• Molecular Weight: Approx. 2800
• Viscosity: Similar to medium-weight motor oil at room temperature
• Appearance: Clear to light amber liquid
• Thermal Stability: Decomposition begins at approximately 240°C
• Vapour Pressure: Very low
• Storage: Store in a cool, dry environment
• Shelf Life: Up to 15 years in the original container

Applications

• Aircraft and aerospace electrical connectors
• Card-edge connectors
• D-Type connectors
• MIL-spec connectors
• Signal switches
• Electronic maintenance and repair
• Intermittent or high-resistance electrical connections
